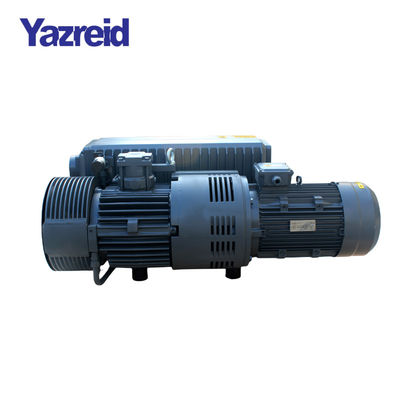

Single Stage oil sealed rotary high vacuum pumps Deep Vacuum Custom

Product Description:

The rotary vane vacuum pump is a positive displacement pump that uses rotary vanes to continuously operate in the pump chamber to suck in and compress gas, and finally discharge it through the exhaust port. The pump is mainly composed of a stator, a rotor, a rotor, etc. The rotor is eccentrically loaded into the stator cavity. There are two rotary vanes in the rotor slot, and the rotary vane spring is placed between the two rotary vanes. The inlet and exhaust ports on the stator are separated into two parts by the rotor and the rotor vane.

When the rotor rotates in the stator cavity, the end of the rotary vane slides close to the inner wall of the pump cavity under the combined action of spring tension and its own centrifugal force, periodically expanding the volume of the cavity on the air inlet side to suck in gas. Gradually reduce the volume of the exhaust port, compress the inhaled gas, and then discharge it from the exhaust port to achieve the purpose of air extraction.

Technical Parameters:

Application:

Vacuum package machine

Glue dispenser

Chip mounter

SMT machine

Vacuum forming machine

Vacuum defoamation

Vacuum drying

Vacuum precooling machine

Dimensions:
