High Vacuum Roots Pumps For Pumping Speed Of 500m3/H And Ultimate Pressure Of 0.005mbar

Large Image : High Vacuum Roots Pumps For Pumping Speed Of 500m3/H And Ultimate Pressure Of 0.005mbar

Product Details:

Contact Now

High Vacuum Roots Pumps For Pumping Speed Of 500m3/H And Ultimate Pressure Of 0.005mbar

Description

Model NO.:	RV500Y	Pumping Speed:	500m3/H
Ultimate Pressure:	0.005mbar	Inlet Diameter:	100mm
Motor Power:	2.2kw	Noise Level:	68dB
Cooling Mode:	Air Cooling	Net Weight:	155kg
Brand:	Hokaido	Transport Package:	Carton With Pallet
Specification:	740300285mm	Trademark:	HOKAIDO
Origin:	Dongguan China	HS Code:	8414100090
Supply Ability:	50/ Month
Highlight:	500m3/H High Vacuum Roots Pumps , 0.005mbar High Vacuum Roots Pumps

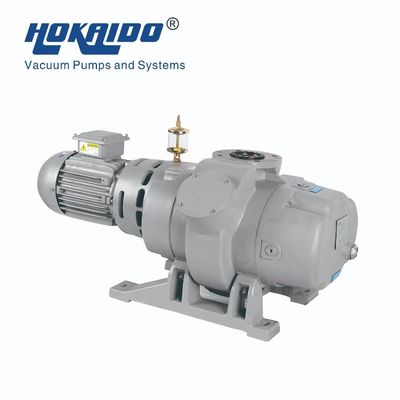

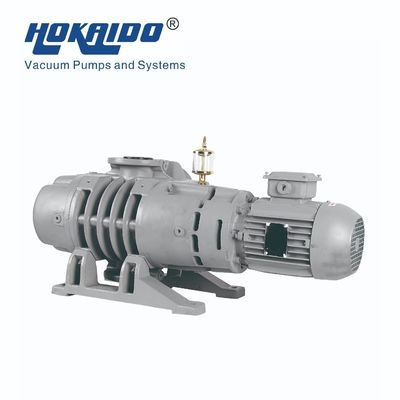

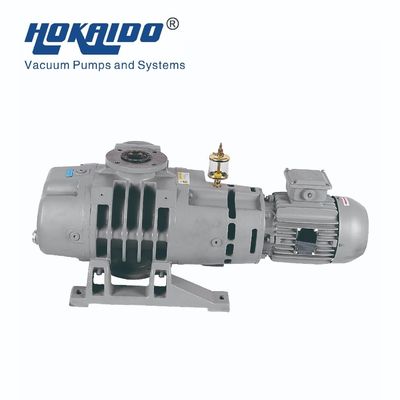

Roots Vacuum Pump (RV500Y)

Our RV-C, RVT and RV-Y mechanical vacuum booster are oil free vacuum pumps that are running together with the backing pumps for all rough and high-vacuum applications where large pumping speeds are needed. Our vacuum boosters operate totally contact-free and with no sealing fluids such as oil or water exiting in the vacuum chamber. MB-Y vacuum boosters are equipped with bypass valve.

Product Model	50/60Hz	RV500Y
Pumping Speed	50Hz	500m³/H
Pumping Speed	60Hz	600m³/H
Ultimate Pressure	mbar	0.005
Outlet Diam	Pa	8000
Inlet Diameter	mm	100
Voltage	50Hz	200-240/345-415V
Voltage	60Hz	220-275/380-480V
Motor Power	kW	2.2
Rotate Speed	r/min	3000
Noise Level	dB	68
Cooling Mode		Air Cooling
Net Weight	kg	155

High Vacuum Roots Pumps for Vacuum Systems
