Roots Vacuum Pump Booster for Petroleum / Chemical Engineering / Medicine / Pharmacy / Food / Spinning / Daily Chemical / Resin Deaeration

Large Image : Roots Vacuum Pump Booster for Petroleum / Chemical Engineering / Medicine / Pharmacy / Food / Spinning / Daily Chemical / Resin Deaeration

Product Details:

Contact Now

Roots Vacuum Pump Booster for Petroleum / Chemical Engineering / Medicine / Pharmacy / Food / Spinning / Daily Chemical / Resin Deaeration

Description

Model NO.:	RV1000Y	Pumping Speed:	1000m3/H
Ultimate Pressure:	0.005mbar	Inlet Diameter:	100mm
Motor Power:	4kw	Noise Level:	68dB
Cooling Mode:	Air Cooling	Net Weight:	233kg
Brand:	Hokaido	Transport Package:	Carton With Pallet
Specification:	740300285mm	Trademark:	HOKAIDO
Origin:	Dongguan China	HS Code:	8414100090
Supply Ability:	50/ Month
Highlight:	Petroleum Roots Vacuum Pump Booster , Chemical Engineering Roots Vacuum Pump Booster , Medicine Roots Vacuum Pump Booster

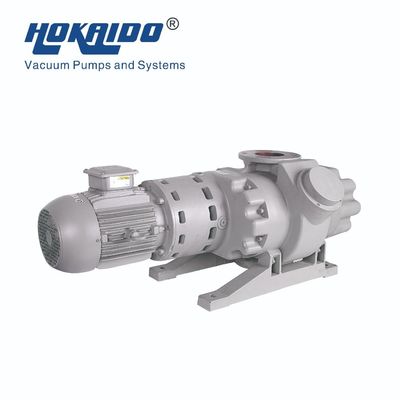

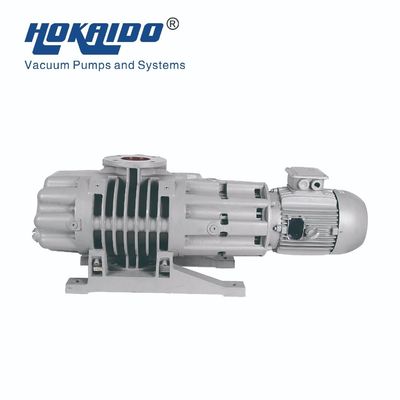

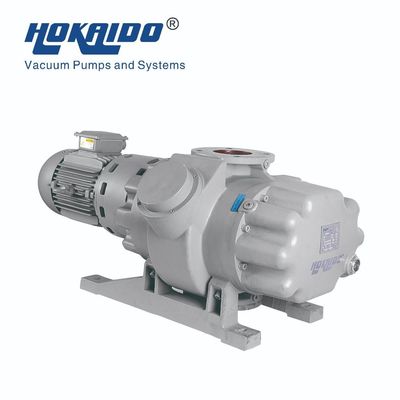

Roots Vacuum Pump (RV1000Y)

Our RV-C, RVT and RV-Y mechanical vacuum booster are oil free vacuum pumps that are running together with the backing pumps for all rough and high-vacuum applications where large pumping speeds are needed. Our vacuum boosters operate totally contact-free and with no sealing fluids such as oil or water exiting in the vacuum chamber. MB-Y vacuum boosters are equipped with bypass valve.

Product Model	50/60Hz	RV1000Y
Pumping Speed	50Hz	1000m³/H
Pumping Speed	60Hz	1200m³/H
Ultimate Pressure	mbar	0.005
Outlet Diam	Pa	8000
Inlet Diameter	mm	68
Voltage	50Hz	200-240/345-415V
Voltage	60Hz	220-275/380-480V
Motor Power	kW	4
Rotate Speed	r/min	3000
Noise Level	dB	68
Cooling Mode		Air Cooling
Net Weight	kg	233

500/1000/2000m³ /H Roots Vacuum Pump Booster Use in Petroleum/Chemical Engineering/Medicine/Pharmacy/Food/Spinning/Daily Use Chemical/ Resin Deaeration
